All systems include:
-
100 User-selectable switch legends
-
Eight user-programmable switches
-
Four 35A circuits and four 20A circuits
-
Waterproof, Solid State 125A Power Module
-
RGB Backlighting provides unlimited color options, using Color Picker on App
-
Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
-
Switches can be programmed for:
-
On/Off or Momentary
-
Ignition or Battery Input
-
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
-
Memory Function
-
Master Mode, with ability to turn multiple outputs On AND Off with one touch
-
Automatic Power-Up upon vehicle start up
-
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
-
Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
-
Sleep Mode for minimal power consumption
-
Color Coded circuit wires
-
LED Input Status Indicators for easy troubleshooting
-
Time Delay Off function available for all circuits
-
Splash proof switch panel with Polycarbonate overlay faceplate
-
Program and control the system from switch panel pad or smart phone
-
Bluetooth interface with FREE Apple or Android App
-
Battery Voltage Readout on App screen
-
No Fuses or Bulky Relay box
-
Built-In Bluetooth Module
Switch Panel Specs:
-
RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
-

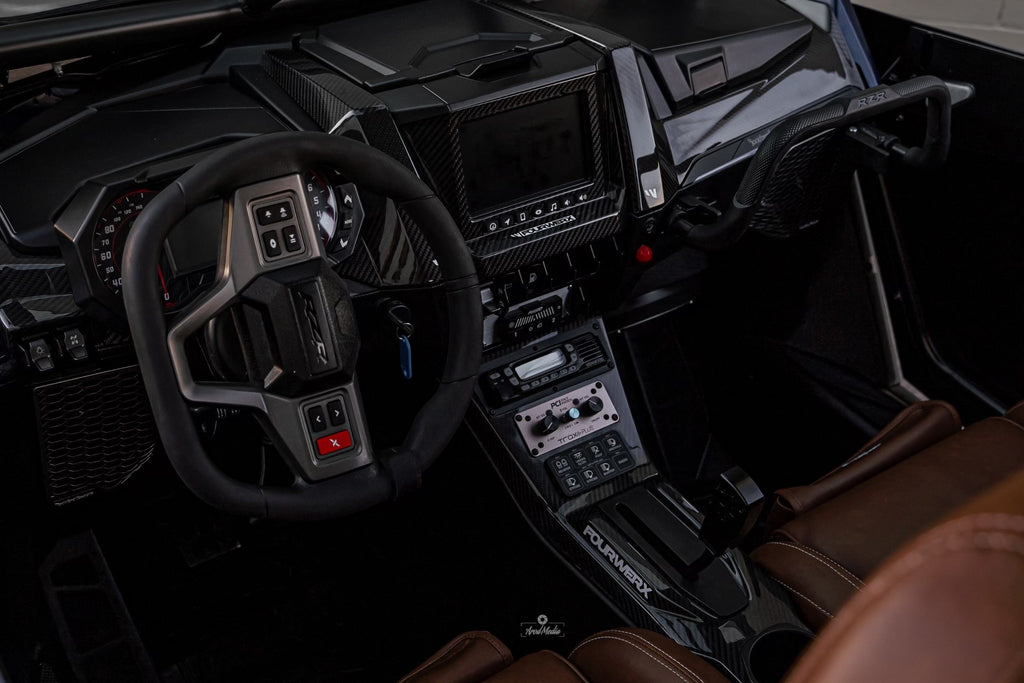

Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
-
Orange LED switch indicators
-
100 User Selectable Legends
Power Module Specs:
-
8 Outputs: 4 rated @ 35A, 4 rated @ 20A
-
125A maximum rating
-
Waterproof and Solid State
-
6”L x 3”W x .5”H (excluding connectors)
-
LED Input Status Indicators for easy troubleshooting
-
Underhood rated 125° to -40°C

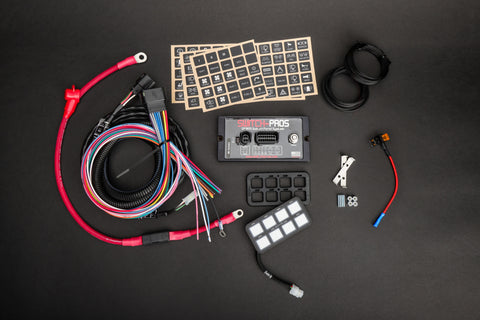

Kit Also Includes:
-
11’ of Communication Cable between Switch Panel and Power Module
-
Color Coded Output wires
-
Wire harness with Waterproof, sealed automotive grade connectors
-
Power Cable with 125A inline fuse
Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
